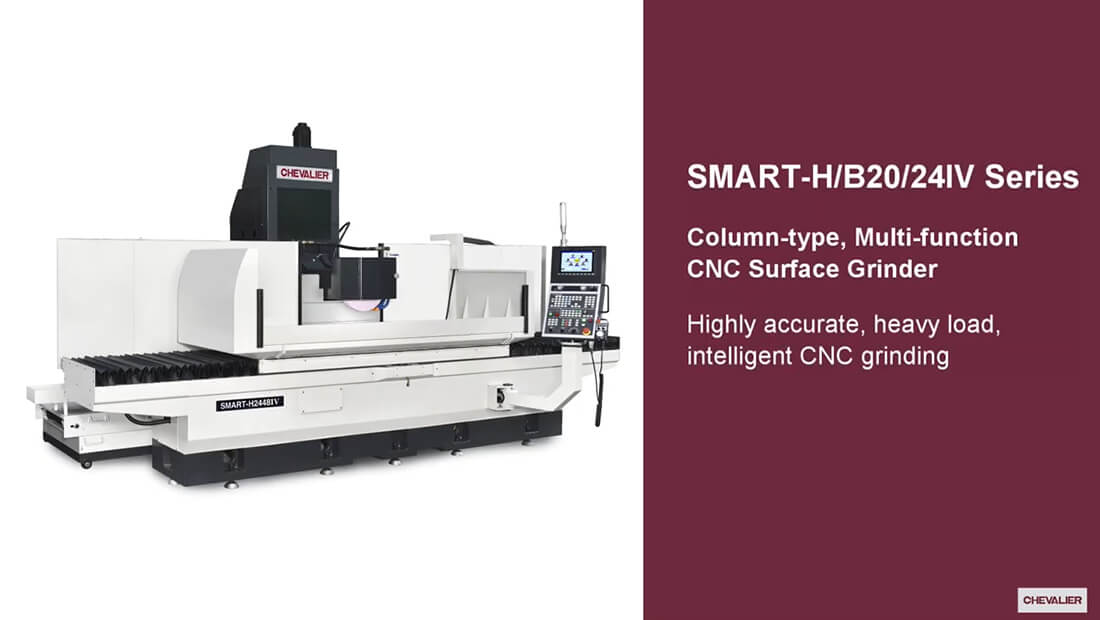

Column-type, Multi-function CNC Hydraulic Surface Grinding Machine

SMART-H/B2048IV ‧ SMART-H/B2064IV ‧ SMART-H/B2448IV ‧ SMART-H/B2464IV ‧ SMART-H/B2480IV ‧ SMART-H24120IV ‧ SMART-H24160IV
CNC Hydraulic Surface Grinding Machine
CNC Hydraulic Surface Grinding Machine
Column-type, Multi-function CNC Hydraulic Surface Grinding Machine
Catalogue Download
Features
Highly accurate, heavy load, intelligent CNC grinding

These larger-sized machines are designed for heavy load grinding to improve performance, precision and stability for highly accurate workpieces along with finer finishes. A number of components contribute to a single-piece design, rigid machine structure that minimizes vibration and displacement. They include: heavy-duty double-V guideway, a double-hydraulic cylinder and a base under the machine table that is long enough to support the full travel of the table.

Video
Specifications

Item Description SMART-H2048IV SMART-B2048IV
Control system SMART iControl SMART iControl
Capacity Max. grinding length-longitudinal 1,200 mm (47.2") 1,200 mm (47.2")
Max. grinding width-crosswise 500 mm (19.7") 500 mm (19.7")
Distance between table to spindle centerline 850 mm (33.5") 850 mm (33.5")
Max. table load 1,250 kg (2,754 lbs.) 1,250 kg (2,754 lbs.)
Table Table size 500 x 1,200 mm (19.7" x 47.2") 500 x 1,200 mm (19.7" x 47.2")
Table speed (variable) 5~30 m/min (16~98.4 fpm) 0~20 m/min (0~65.6 fpm)
Max. table travel 1,300 mm (51.2") 1,300 mm (51.2")
Transverse movement (Z) Max. travel 560 mm (22.0") 560 mm (22.0")
Feed speed 0~5,000 mm/min (0~16.4 fpm) 0~5,000 mm/min (0~16.4 fpm)
Wheelhead elevation (Y) Max. travel 675 mm (26.6") 675 mm (26.6")
Feed speed 0~2,000 mm/min (0~6.56 fpm) 0~2,000 mm/min (0~6.56 fpm)
Spindle Spindle speed (variable speed) 500~2,200 rpm  500~2,200 rpm
Spindle motor 11 kW (15 HP), optional 18.5 kW (25 HP)  11 kW (15 HP), optional 18.5 kW (25 HP)
Motors Axis motors (X / Y / Z) Y: 3.1 kW
Z: 2.4 kW 		 X: 7.5 kW Y: 3.1 kW
Z: 2.4 kW
Hydraulic motor 5 HP / 6P  —
Wheel dimension OD x Width x Bore Ø405 x 50 x Ø127 mm (Ø16" x 2" x Ø5"), optional Ø510 x 50 x Ø27 mm (Ø20" x 2" x Ø5")
Machine dimensions Floor space (W x D x H) 4,600 x 2,950 x 2,745 mm (181.1" x 116.1" x 108.1") 4,400 x 2,950 x 2,745 mm (173.2" x 116.1” x 108.1")
Net weight 6,400 kg (14,100 lbs.) 6,400 kg (14,100 lbs.)

Item Description SMART-H2064IV SMART-B2064IV
Control system SMART iControl  SMART iControl
Capacity Max. grinding length-longitudinal 1,600 mm (63.0") 1,600 mm (63.0")
Max. grinding width-crosswise 500 mm (19.7") 500 mm (19.7")
Distance between table to spindle centerline 850 mm (33.5") 850 mm (33.5")
Max. table load 1,580 kg (3,481 lbs.) 1,580 kg (3,481 lbs.)
Table Table size 500 x 1,600 mm (19.7" x 63.0") 500 x 1,600 mm (19.7" x 63.0")
Table speed (variable) 5~30 m/min  (16~98.4 fpm) 0~20 m/min (0~65.6 fpm)
Max. table travel 1,700 mm (66.9") 1,700 mm (66.9")
Transverse movement (Z) Max. travel 560 mm (22.0") 560 mm (22.0")
Feed speed 0~5,000 mm/min (0~16.4 fpm) 0~5,000 mm/min (0~16.4 fpm)
Wheelhead elevation (Y) Max. travel 675 mm (26.6") 675 mm (26.6")
Feed speed 0~2,000 mm/min (0~6.56 fpm) 0~2,000 mm/min (0~6.56 fpm)
Spindle Spindle speed (variable speed) 500~2,200 rpm  500~2,200 rpm
Spindle motor 11 kW (15 HP), optional 18.5 kW (25 HP)  11 kW (15 HP), optional 18.5 kW (25 HP)
Motors Axis motors (X / Y / Z) Y: 3.1 kW  X: 7.5 kW
Y: 3.1 kW
Z: 2.4 kW
Hydraulic motor 5 HP / 6P —
Machine dimensions Floor space (W x D x H) 5,200 x 2,950 x 2,745 mm  (204.7" x 116.1" x 108.1") 5,200 x 2,950 x 2,745 mm  (204.7" x 116.1" x 108.1")
Net weight 8,000 kg (17,600 lbs.) 8,000 kg (17,600 lbs.)

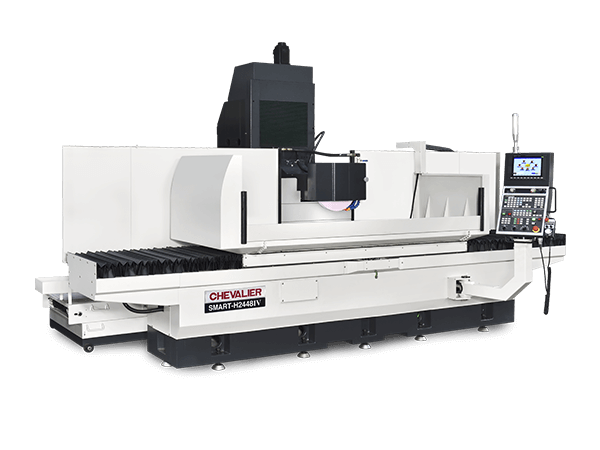

Item Description SMART-H2448IV SMART-B2448IV
Control system SMART iControl SMART iControl
Capacity Max. grinding length-longitudinal 1,200 mm  (47.2") 1,200 mm  (47.2")
Max. grinding width-crosswise 600 mm  (23.6") 600 mm  (23.6")
Distance between table to spindle centerline 850 mm  (33.5") 850 mm  (33.5")
Max. table load 1,600 kg  (3,525 lbs.) 1,600 kg  (3,525 lbs.)
Table Table size 600 x 1,200 mm (23.6" x 47.2") 600 x 1,200 mm (23.6" x 47.2")
Table speed (variable) 5~30 m/min  (16~98.4 fpm) 0~20 m/min (0~65.6 fpm)
Max. table travel 1,300 mm   (51.2") 1,300 mm   (51.2")
Transverse movement (Z) Max. travel 685 mm  (27.0") 685 mm  (27.0")
Feed speed 0~5,000 mm/min  (0~16.4 fpm) 0~5,000 mm/min  (0~16.4 fpm)
Wheelhead elevation (Y) Max. travel 675 mm  (26.6") 675 mm  (26.6")
Feed speed 0~2,000 mm/min  (0~6.56 fpm) 0~2,000 mm/min  (0~6.56 fpm)
Spindle Spindle speed (variable speed) 500~2,200 rpm  500~2,200 rpm
Spindle motor 11 kW (15 HP), optional 18.5 kW (25 HP)  11 kW (15 HP), optional 18.5 kW (25 HP)
Motors Axis motors (X / Y / Z) Y/Z: 3.1 kW  X: 7.5 kW
Y/Z: 3.1 kW
Hydraulic motor 7.5 HP / 6P  —
Wheel dimension OD x Width x Bore Ø405 x 50 x Ø127 mm (Ø16" x 2" x Ø5"), optional Ø510 x 50 x Ø27 mm (Ø20" x 2" x Ø5")
Machine dimensions Floor space (W x D x H) 4,800 x 3,320 x 2,850 mm (189.0" x 130.7" x 112.2") 4,630 x 3,320 x 2,850 mm (182.3" x 130.7" x 112.2")
Net weight 8,100 kg (17,800 lbs.) 8,100 kg (17,800 lbs.)

Item Description SMART-H2464IV SMART-B2464IV
Control system 　 SMART iControl  SMART iControl
Capacity Max. grinding length-longitudinal 1,600 mm  (63.0") 1,600 mm  (63.0")
Max. grinding width-crosswise 600 mm  (23.6") 600 mm  (23.6")
Distance between table to spindle centerline 850 mm  (33.5") 850 mm  (33.5")
Max. table load 1,750 kg  (3,855 lbs.) 1,750 kg  (3,855 lbs.)
Table Table size 600 x 1,600 mm (23.6" x 63.0") 600 x 1,600 mm (23.6" x 63.0")
Table speed (variable) 5~30 m/min  (16~98.4 fpm) 0~20 m/min (0~65.6 fpm)
Max. table travel 1,700 mm (66.9") 1,700 mm (66.9")
Transverse movement (Z) Max. travel 685 mm (27.0") 685 mm (27.0")
Feed speed 0~5,000 mm/min  (0~16.4 fpm) 0~5,000 mm/min  (0~16.4 fpm)
Wheelhead elevation (Y) Max. travel 675 mm  (26.6") 675 mm  (26.6")
Feed speed 0~2,000 mm/min  (0~6.56 fpm) 0~2,000 mm/min  (0~6.56 fpm)
Spindle Spindle speed (variable speed) 500~2,200 rpm  500~2,200 rpm
Spindle motor 11 kW (15 HP), optional 18.5 kW (25 HP)  11 kW (15 HP), optional 18.5 kW (25 HP)
Motors Axis motors (X / Y / Z) Y/Z: 3.1 kW  X: 7.5 kW
Y/Z: 3.1 kW
Hydraulic motor 7.5 HP / 6P  —
Wheel dimension OD x Width x Bore Ø405 x 50 x Ø127 mm (Ø16" x 2" x Ø5"), optional Ø510 x 50 x Ø27 mm (Ø20" x 2" x Ø5")
Machine dimensions Floor space (W x D x H) 6,165 x 3,320 x 2,850 mm  (242.7" x 130.7" x 112.2") 6,165 x 3,320 x 2,850 mm  (242.7" x 130.7" x 112.2")
Net weight 9,500 kg  (20,900 lbs.) 9,500 kg  (20,900 lbs.)

Item Description SMART-H2480IV SMART-B2480IV
Control system   SMART iControl SMART iControl
Capacity Max. grinding length-longitudinal 2,000 mm (78.7") 2,000 mm (78.7")
Max. grinding width-crosswise 600 mm (23.6") 600 mm (23.6")
Distance between table to spindle centerline 850 mm (33.5") 850 mm (33.5")
Max. table load 2,000 kg (4,406 lbs.) 2,000 kg (4,406 lbs.)
Table Table size 600 x 2,000 mm (23.6" x 78.7") 600 x 2,000 mm (23.6" x 78.7")
Table speed (variable) 5~30 m/min  (16~98.4 fpm) 0~20 m/min (0~65.6 fpm)
Max. table travel 2,100 mm  (82.7") 2,100 mm  (82.7")
Transverse movement (Z) Max. travel 685 mm (27.0") 685 mm (27.0")
Feed speed 0~5,000 mm/min (0~16.4 fpm) 0~5,000 mm/min (0~16.4 fpm)
Wheelhead elevation (Y) Max. travel 675 mm (26.6") 675 mm (26.6")
Feed speed 0~2,000 mm/min (0~6.56 fpm) 0~2,000 mm/min (0~6.56 fpm)
Spindle Spindle speed (variable speed) 500~2,200 rpm  500~2,200 rpm
Spindle motor 11 kW (15 HP), optional 18.5 kW (25 HP)  11 kW (15 HP), optional 18.5 kW (25 HP)
Motors Axis motors (X / Y / Z) Y/Z: 3.1 kW  X: 7.5 kW
Y/Z: 3.1 kW
Hydraulic motor 7.5 HP / 6P  —
Wheel dimension OD x Width x Bore Ø405 x 50 x Ø127 mm (Ø16" x 2" x Ø5"), optional Ø510 x 50 x Ø27 mm (Ø20" x 2" x Ø5")
Machine dimensions Floor space (W x D x H) 7,710 x 3,320 x 2,850 mm (303.5" x 130.7" x 112.2") 7,710 x 3,320 x 2,850 mm (303.5" x 130.7" x 112.2")
Net weight 10,200 kg (22,400 lbs.) 10,200 kg (22,400 lbs.)

Item Description SMART-H24120IV
Control system   SMART iControl
Capacity Max. grinding length-longitudinal 3,000 mm (118.1")
Max. grinding width-crosswise 600 mm (23.6")
Distance between table to spindle centerline 850 mm (33.5")
Max. table load 2,400 kg  (5,280 lbs.)
Table Table size 600 x 3,000 mm (23.6" x 118.1")
Table speed (variable) 5~30 m/min (16~98.4 fpm)
Max. table travel 3,200 mm (125.9")
Transverse movement (Z) Max. travel 685 mm (27.0")
Feed speed 0~5,000 mm/min (0~16.4 fpm)
Wheelhead elevation (Y) Max. travel 675 mm (26.6")
Feed speed 0~2,000 mm/min (0~6.56 fpm)
Spindle Spindle speed (variable speed) 500~2,200 rpm
Spindle motor 11 kW (15 HP), optional 18.5 kW (25 HP)
Motors Axis motors (X / Y / Z) Y/Z: 3.1 kW
Hydraulic motor 10 HP / 6P
Wheel dimension OD x Width x Bore Ø405 x 50 x Ø127 mm (Ø16" x 2" x Ø5"), optional Ø510 x 50 x Ø27 mm (Ø20" x 2" x Ø5")
Machine dimensions Floor space (W x D x H) 8,740 x 3,320 x 2,850 mm  (344.1" x 130.7" x 112.2")
Net weight 15,000 kg (33,0400 lbs.)

Item Description SMART-H24160IV
Control system   SMART iControl
Capacity Max. grinding length-longitudinal 4,000 mm (157.5")
Max. grinding width-crosswise 600 mm (23.6")
Distance between table to spindle centerline 850 mm (33.5")
Max. table load 2,800 kg (6,160 lbs.)
Table Table size 600 x 4,000 mm (23.6" x 157.5")
Table speed (variable) 5~30 m/min  (16~98.4 fpm)
Max. table travel 4,200 mm  (165.4")
Transverse movement (Z) Max. travel 685 mm (27.0")
Feed speed 0~5,000 mm/min (0~16.4 fpm)
Wheelhead elevation (Y) Max. travel 675 mm (26.6")
Feed speed 0~2,000 mm/min (0~6.56 fpm)
Spindle Spindle speed (variable speed) 500~2,200 rpm
Spindle motor 11 kW (15 HP), optional 18.5 kW (25 HP)
Motors Axis motors (X / Y / Z) Y/Z: 3.1 kW
Hydraulic motor 15 HP / 6P
Wheel dimension OD x Width x Bore Ø405 x 50 x Ø127 mm (Ø16" x 2" x Ø5"), optional Ø510 x 50 x Ø27 mm (Ø20" x 2" x Ø5")
Machine dimensions Floor space (W x D x H) 11,200 x 3,320 x 2,850 mm  (440.9" x 130.7" x 112.2")
Net weight 17,500 kg  (38,550 lbs.)
