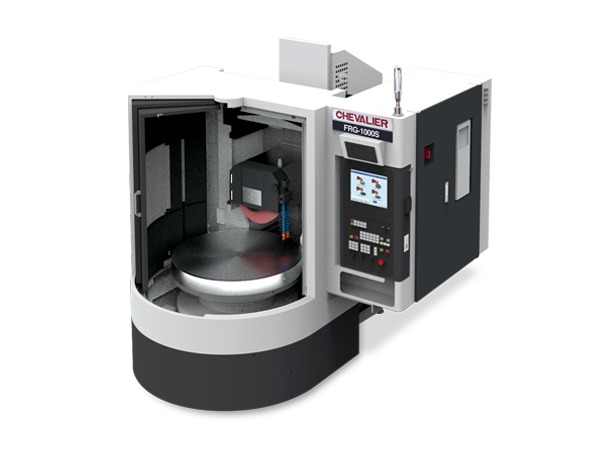

SMART iControl CNC Rotary Surface Grinder
Unleash Efficiency with Chevalier Rotary Table Surface Grinders
As a leading machine tools manufacturer, Chevalier is dedicated to providing innovative and efficient machining solutions that meet the evolving demands of the market. The FRG-S series CNC rotary table surface grinder delivers twice the processing efficiency of traditional surface grinders and further extends the range of sizes across the entire series. Whether for small or large workpieces, it offers flexible and efficient performance to meet a wide variety of machining needs.
The FRG-S series features a moving column structure and a fully enclosed hydrostatic rotary table design, demonstrating outstanding stability and heavy load grinding capacity, ensuring high precision and reliability during the machining process. Additionally, it is equipped with Chevalier‘s next generation SMART iControl, which simplifies operation procedures and greatly enhances the performance of Chevalier CNC grinders and production efficiency.
The features mentioned above make the FRG-S series an ideal choice for industries such as aerospace, automotive, energy, medical, and semiconductors. Its compact design allows for flexible integration into various production environments and easy incorporation of robotic arms, creating an efficient automated machining process and providing users with comprehensive and advanced solutions.
SMART iControl feature
Surface dressing, profile dressing
Surface grinding, step grinding, stair grinding, profile grinding
| Item | Description | FRG-400S | FRG-600S |
|---|---|---|---|
| Control system | SMART iControl 10.4" LCD monitor | SMART iControl 10.4" LCD monitor | |
| Capacity | Max. grinding radius | 225 mm (8.9") | 325 mm (12.”8) |
| Max. grinding height (elevating) | 350 mm (13. 8") | 350 mm (13. 8") | |
| Distance between table to spindle centerline | 500 mm (19.7”) | 500 mm (19.7”) | |
| Height from the machine table to ground | 920 mm (36.2”) | 920 mm (36.2”) | |
| Max. table load | 150 kg (330 lbs.) | 400 kg (882 lbs.) | |
| Rotary table | Table size | Ø400 mm (Ø15.7") | Ø600 mm (Ø23.6”) |
| Table speed | 10~150 rpm | 10~150 rpm | |
| Transverse movement (Z) | Max. travel | 380 mm (15.0") | 380 mm (15.0") |
| Feed speed | 0~3,000 mm/min (0 ~ 9.75 fpm) | 0~3,000 mm/min (0 ~ 9.75 fpm) | |
| Wheelhead elevation (Y) | Max. travel | 430 mm (16.9”) | 430 mm (16.9”) |
| Feed speed | 0~2,000 mm/min (0~6.56 fpm) | 0~2,000 mm/min (0~6.56 fpm) | |
| Spindle | Spindle speed | 500~2,200 rpm | 500~2,200 rpm |
| Spindle motor | 5.5 kW (7.5 HP), optional 7.5 kW (10 HP) | 5.5 kW (7.5 HP), optional 7.5 kW (10 HP) | |
| Motors | Rotary table motor | 2.4 kW (3 HP) | 2.4 kW (3 HP) |
| Axis motors (Y/Z) | Y/Z: 1.7 kW | Y/Z: 1.7 kW | |
| Wheel dimension | OD x Width x Bore | Ø355 x 38 x Ø127 mm (Ø14" x 1.5" x Ø5") | Ø355 x 38 x Ø127 mm (Ø14" x 1.5" x Ø5") |
| Tank capabilities | Oil tank capacity for rotary table | 18 L (5 gals.) | 18 L (5 gals.) |
| Machine dimensions | Floor space (W x D x H) | 2,800 x 2,800 x 2,610 mm (110.2" x 110.2" x 102.8") | 2,800 x 2,800 x 2,610 mm (110.2" x 110.2" x 102.8") |
| Net weight | 3,400 kg (7,500 lbs.) | 3,500 kg (7,700 lbs.) |
| Item | Description | FRG-800S | FRG-1000S |
|---|---|---|---|
| Control system | SMART iControl 15" LCD monitor | SMART iControl 15" LCD monitor | |
| Capacity | Max. grinding radius | 425 mm (16.7") | 525 mm (20.7”) |
| Max. grinding height (elevating) | 400 mm (15.7”) | 400 mm (15.7”) | |
| Distance between table to spindle centerline | 550 mm (21.7”) | 550 mm (21.7”) | |
| Height from the machine table to ground | 900 mm (35.4”) | 900 mm (35.4”) | |
| Max. table load | 1,000 kg (2,204 lbs.) | 1,200 kg (2,644 lbs.) | |
| Rotary table | Table size | Ø800 mm (Ø31.5") | Ø1,000 mm (Ø39.4”) |
| Table speed | 10~80 rpm | 10~80 rpm | |
| Transverse movement (Z) | Max. travel | 635 mm (25.0”) | 635 mm (25.0”) |
| Feed speed | 0~4,000 mm/min (0~13 fpm) | 0~4,000 mm/min (0~13 fpm) | |
| Wheelhead elevation (Y) | Max. travel | 500 mm (19.7”) | 500 mm (19.7”) |
| Feed speed | 0~3,800 mm/min (0~12.5 fpm) | 0~3,800 mm/min (0~12.5 fpm) | |
| Spindle | Spindle speed | 600~3,600 rpm | 600~3,600 rpm |
| Spindle motor | 15 kW (20 HP), optional 18 kW (25 HP) | 15 kW (20 HP), optional 18 kW (25 HP) | |
| Motors | Rotary table motor | 3.1 kW | 3.1 kW |
| Axis motors (Y/Z) | Y:2.4 kW / Z: 3.9 KW | Y:2.4 kW / Z: 3.9 KW | |
| Wheel dimension | OD x Width x Bore | Ø405 x 50 x Ø127 mm (Ø16” x 2” x Ø5”) | Ø405 x 50 x Ø127 mm (Ø16” x 2” x Ø5”) |
| Tank capabilities | Oil tank capacity for rotary table | 70 L ( 18.5 gals.) | 70 L ( 18.5 gals.) |
| Machine dimensions | Floor space (W x D x H) | 3,135 mm x 3,150 mm x 2,415 mm (123.4“x 124.0” x 95.1”) | 3,135 mm x 3,150 mm x 2,415 mm (123.4“x 124.0” x 95.1”) |
| Net weight | 6,400 kg (14,100 lbs.) | 6,500 kg (14,320 lbs.) |
All content is for reference only and may be subject to change without prior notice or obligation.
