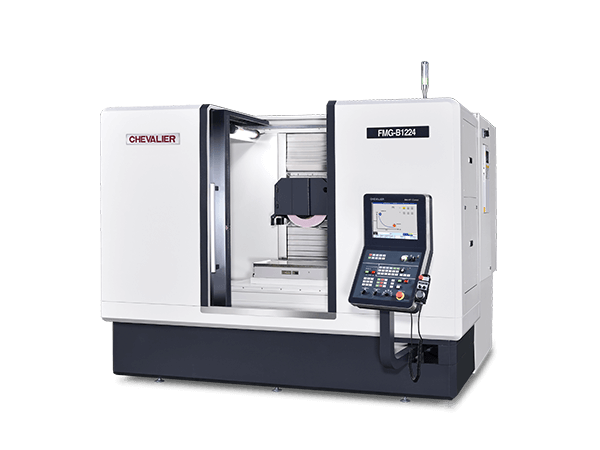

Traveling Column, Highly Efficient Profile Grinder

FMG-B1224 ‧ FMG-B1640
Traveling Column, Highly Efficient Profile Grinder
Features
Better flexibility for complex grinding

These are the driving forces behind the design of our new Traveling Column High-Efficiency Profile Grinding Machine. They're the standards required by the medical, automotive, mining, semiconductor, aerospace and job shop industries in order to meet current grinding demands and pave the way to smart manufacturing.

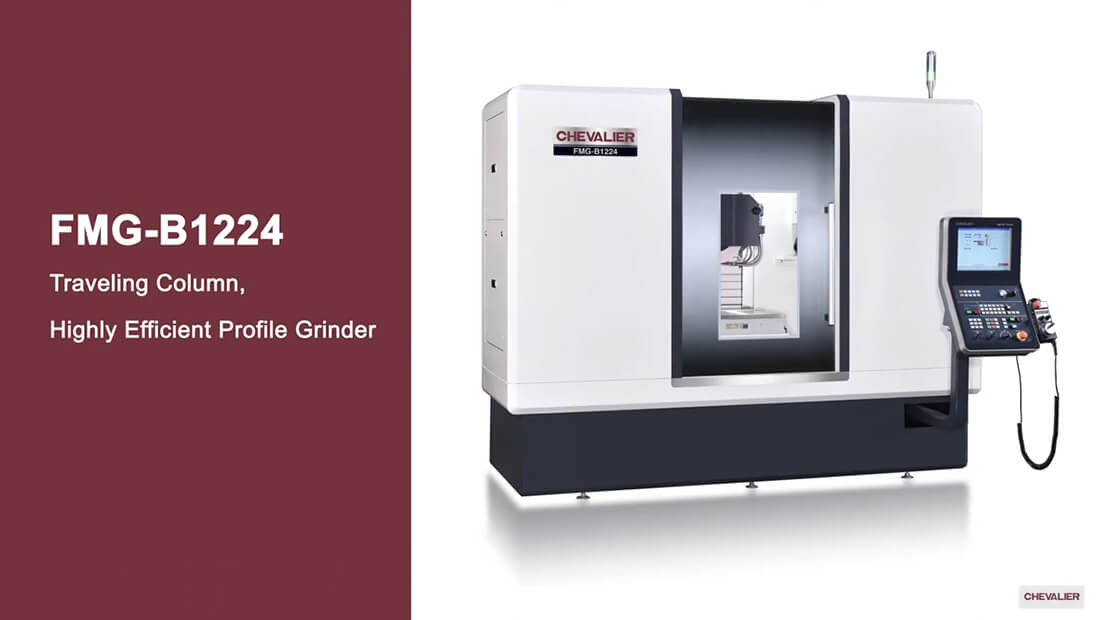

Video
Specifications

Item Description FMG-B1224
Control system   SMART iControl
Capacity Max. grinding length-longitudinal 610 mm (24.0")
Max. grinding width-crosswise 305 mm (12.0")
Distance between table to spindle centerline 590 mm (23.2")
Max. table load 420 kg (925 lbs.)
Table Table size 300 x 600 mm (11.8" x 23.6")
Height from table to ground 810 mm (31.9")
Table speed 0~25 m/min (0~82 fpm)
Max. table travel 710 mm (28.0")
Transverse movement (Z) Max. travel 350 mm (13.8")
Feed speed 0~4,000 mm/min (0~13 fpm)
Wheelhead elevation (Y) Max. travel 450 mm (17.7")
Feed speed 0~3,800 mm/min (0~12.5 fpm)
Spindle Spindle speed 600~3,600 rpm
Spindle motor 11 kW (15 HP)
Motors Axis motors (X/ Y/ Z) X: 3.9 kW
Y: 2.4 kW
Z: 3.9 kW
Wheel dimension OD x Width x Bore Ø405 x 50 x Ø127 mm (Ø16" x 2" x Ø5")
Machine dimensions Floor space (W x D x H) 3,103 x 3,933 x 2,480 mm (122.2" x 154.8" x 97.6")
Net weight 5,800 kg (12,700 lbs.)

Item Description FMG-B1640
Control system SMART iControl
Capacity Max. grinding length-longitudinal 1,010 mm (39.8")
Max. grinding width-crosswise 405 mm (15.9")
Distance between table to spindle centerline 590 mm (23.2")
Max. table load 670 kg (1,476 lbs.)
Table Table size 400 x 1,000 mm (15.7" x 39.4")
Height from table to ground 810 mm (31.9")
Table speed 0~25 m/min (0~82 fpm)
Max. table travel 1,100 mm (43.3")
Transverse movement (Z) Max. travel 450 mm (17.7")
Feed speed 0~4,000 mm/min (0~13 fpm)
Wheelhead elevation (Y) Max. travel 450 mm (17.7")
Feed speed 0~3,800 mm/min (0~12.5 fpm)
Spindle Spindle speed 600~3,600 rpm
Spindle motor 11 kW (15 HP)
Motors Axis motors (X/ Y/ Z) X: 5.9 kW
Y: 2.4 kW
Z: 3.9 kW
Wheel dimension OD x Width x Bore Ø405 x 50 x Ø127 mm (Ø16" x 2" x Ø5")
Machine dimensions Floor space (W x D x H) 3,675 x 4,055 x 2,480 mm (144.7" x 159.6" x 97.6")
Net weight 6,500 kg (14,300 lbs.)

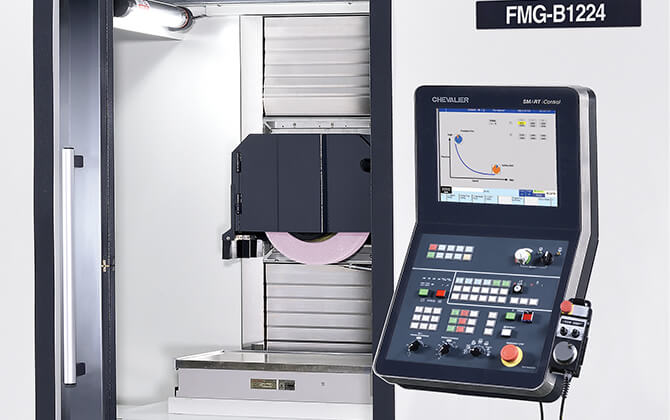

Control Introduction
Application
