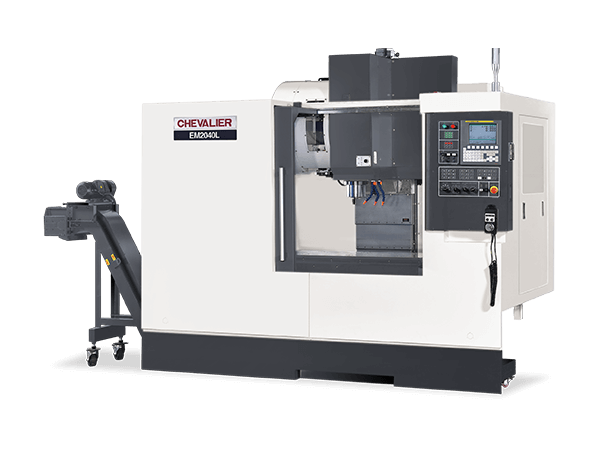

High-speed Vertical Machining Center

EM2033L ‧ EM2040L
High-speed Vertical Machining Center
Features
Minimizing machining time with high rapid speed

The EM Series is the best value for the money. This high-speed VMC delivers more bang for your buck and increases your production capabilities. The series is engineered with efficiency to satisfy the need for large quantity machining. Choose from three models: EM1620L, EM2033L and EM2040L.

There is nothing sacrificed or compromised in the EM Series. Major parts of the machine are constructed with high-density cast iron offering superior stability. The machine's base is supported by full travel, enabling it to be suitable for high-speed machining. All three axes are built with high-speed linear ways providing smooth quick movement without delay.

Specifications

Item Description EM2033L
Table Table size 1,000 x 510 mm (39.4" x 20.1")
Max. table load 500 kg (1,100 lbs.)
Travel X-travel 850 mm (33.5")
Y-travel 530 mm (20.9")
Z-travel 510 mm (20.1")
Spindle Spindle nose to table surface 150~660 mm (5.9"~26.0")
Spindle center to column 585 mm (23.0")
Spindle taper #40 BIG PLUS
Spindle speed Belt drive: 10,000 rpm, optional 8,000/12,000 rpm
Direct drive: 10,000 rpm, optional 12,000 rpm
Spindle diameter Ø70 mm (Ø2.8")
Feed rates Rapid traverse (X/Y/Z) 36/36/24 m/min (1,417/1,417/944 ipm)
Cutting feed  (X/Y/Z) 1~10 m/min (39.3~393 ipm)
Automatic tool changer Tool storage capacity 24+1 arm type
Tool shank BT40, optional CT40* or DIN40
Tool change time (T-T) 3 sec.
Pull stud P40T-1
Max. tool diameter with adjacent tool Ø80 mm (Ø3.1")
Max. tool length 300 mm (11.8")
Max. tool weight 7 kg (15.4 lbs.)
Machine dimension Floor space (W x D x H) 2,360 x 3,020 x 2,600 mm (92.9" x 118.9" x 102.4")
Net weight 5,800 kg (12,700 lbs.)

Item Description EM2040L
Table Table size 1,200 x 510 mm (47.2" x 20.1")
Max. table load 600 kg (1,320 lbs.)
Travel X-travel 1,020 mm (40.2")
Y-travel 530 mm (20.9")
Z-travel 510 mm (20.1")
Spindle Spindle nose to table surface 130~640 mm (5.1"~25.2")
Spindle center to column 585 mm (23.0")
Spindle taper #40 BIG PLUS
Spindle speed Belt drive: 10,000 rpm, optional 8,000/12,000 rpm
Direct drive: 10,000 rpm, optional 12,000 rpm
Spindle diameter Ø70 mm (Ø2.8")
Feed rates Rapid traverse (X/Y/Z) 36/36/24 m/min (1,417/1,417/944 ipm)
Cutting feed (X/Y/Z) 1~10 m/min (39.3~393 ipm)
Automatic tool changer Tool storage capacity 24+1 arm type
Tool shank BT40, optional CT40* or DIN40
Tool change time (T-T) 3 sec.
Pull stud P40T-1
Max. tool diameter with adjacent tool Ø80 mm (Ø3.1")
Max. tool length 300 mm (11.8")
Max. tool weight 7 kg (15.4 lbs.)
Machine dimension Floor space (W x D x H) 2,720 x 3,020 x 2,600 mm (107.0" x 118.5" x 102.4")
Net weight 6,200 kg (13,600 lbs.)
