High-speed Vertical Machining Center

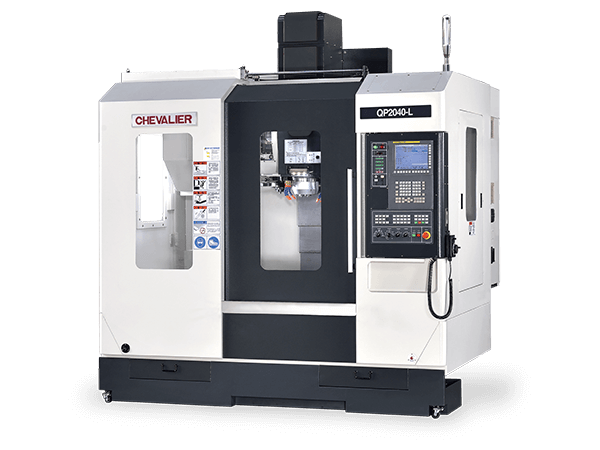

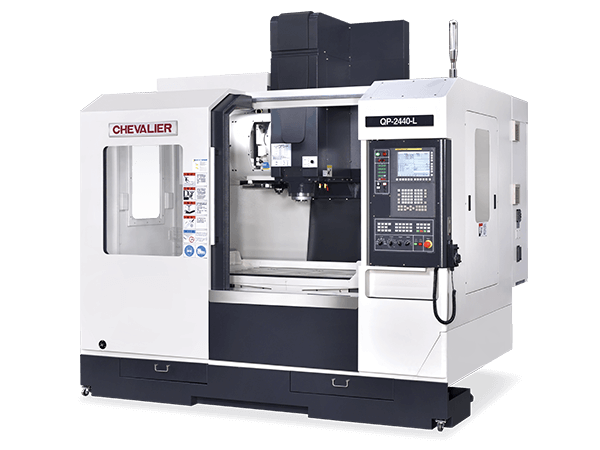

QP2033-L ‧ QP2040-L ‧ QP2440-L
High-speed Vertical Machining Center
Features
High Precision. Rigid. Efficient.

The QP-L Series of VMCs is powerful, reliable and offer fast movement of interpolation that meets your needs to stay productive. This series is designed with efficiency to meet the need for large quantity machining with shorter cycling time.

Major parts of the QP-L structure are constructed of high-density cast iron for stability. The base is supported by full-travel, enabling high-speed machining. The QP-L Series serves a variety of industries, including aerospace, defense, automotive, energy, gas and oil, medical and job shops.

Our exclusive iMachine Communications System™ (iMCS) software features remote machine monitoring, data analysis, alarm history and maintenance updates for overall equipment effectiveness (OEE). And to ensure the affordable QP-L VMCs continue to operate efficiently for years to come, we back them with our no-nonsense standards and legendary service for reliable performance.

Specifications

Item Description QP2033-L
Table Table size 1,000 x 510 mm (39.4" x 20.1")
Max. table load 500 kg (1,100 lbs.)
Travel X-travel 850 mm (33.5")
Y-travel 530 mm (20.9")
Z-travel 510 mm (20.1")
Spindle Spindle nose to table surface 150~660 mm (5.9"~26.0")
Spindle center to column 585 mm (23.0")
Spindle taper #40 BIG PLUS
Spindle speed Belt drive: 10,000 rpm
Direct drive: 12,000 rpm, optional 15,000 rpm
Spindle diameter Ø70 mm (Ø2.8")
Feed rates Rapid traverse (X/Y/Z) 36/36/24 m/min, optional 36/36/30 m/min (1,417/1,417/944 ipm, optional 1,417/1,417/1,181 ipm)
Cutting feed  (X/Y/Z) 1~10 m/min (39.3~393 ipm)
Automatic tool changer Tool storage capacity 24+1 arm type, optional Arm: 30
Tool shank BT40, optional CT40* or DIN40
Tool change time (T-T) 2 sec.
Pull stud P40T-1
Max. tool diameter with adjacent tool Ø80 mm (Ø3.1")
Max. tool length 300 mm (11.8")
Max. tool weight 7 kg (15.4 lbs.)
Machine dimension Floor space (W x D x H) 2,430 x 3,020 x 2,963 mm (95.7" x 118.9" x 116.7")
Net weight 5,800 kg (12,700 lbs.)

Item Description QP2040-L
Table Table size 1,200 x 510 mm (47.2" x 20.1")
Max. table load 600 kg (1,320 lbs.)
Travel X-travel 1,020 mm (40.2")
Y-travel 530 mm (20.9")
Z-travel 510 mm (20.1")
Spindle Spindle nose to table surface 130~640 mm (5.1"~25.2")
Spindle center to column 585 mm (23.0")
Spindle taper #40 BIG PLUS
Spindle speed Belt drive: 10,000 rpm
Direct drive: 12,000 rpm, optional 15,000 rpm
Spindle diameter Ø70 mm (Ø2.8")
Feed rates Rapid traverse (X/Y/Z) 36/36/24 m/min, optional 36/36/30 m/min (1,417/1,417/944 ipm, optional 1,417/1,417/1,181 ipm)
Cutting feed  (X/Y/Z) 1~10 m/min (39.3~393 ipm)
Automatic tool changer Tool storage capacity 24+1 arm type, optional Arm: 30
Tool shank BT40, optional CT40* or DIN40
Tool change time (T-T) 2 sec.
Pull stud P40T-1
Max. tool diameter with adjacent tool Ø80 mm (Ø3.1")
Max. tool length 300 mm (11.8")
Max. tool weight 7 kg (15.4 lbs.)
Machine dimension Floor space (W x D x H) 2,800 x 3,020 x 2,963 mm (110.2" x 118.9" x 116.7")
Net weight 6,200 kg (13,600 lbs.)

Item Description QP2440-L
Table Table size 1,200 x 610 mm (47.2" x 24.0")
Max. table load 600 kg (1,320 lbs.)
Travel X-travel 1,020 mm (40.2")
Y-travel 610 mm (24.0")
Z-travel 550 mm (21.7")
Spindle Spindle nose to table surface 130~680 mm (5.1"~26.8")
Spindle center to column 685 mm (27.0")
Spindle taper #40 BIG PLUS
Spindle speed Belt drive: 10,000 rpm
Direct drive: 12,000 rpm, optional 15,000 rpm
Spindle diameter Ø70 mm (Ø2.8")
Feed rates Rapid traverse (X/Y/Z) 36/36/24 m/min, optional 36/36/30 m/min (1,417/1,417/944 ipm, optional 1,417/1,417/1,181 ipm)
Cutting feed  (X/Y/Z) 1~10 m/min (39.3~393 ipm)
Automatic tool changer Tool storage capacity 24+1 arm type, optional Arm: 30
Tool shank BT40, optional CT40* or DIN40
Tool change time (T-T) 2 sec.
Pull stud P40T-1
Max. tool diameter with adjacent tool Ø80 mm (Ø3.1")
Max. tool length 300 mm (11.8")
Max. tool weight 7 kg (15.4 lbs.)
Machine dimension Floor space (W x D x H) 2,800 x 3,130 x 3,050 mm (110.2" x 123.2" x 120.0")
Net weight 6,700 kg (14,770 lbs.)
