High Precision Surface and Form Grinders

FSG-618M ‧ FSG-612SP ‧ FSG-618SP ‧ FSG-818SP ‧ FSG-2A618 ‧ FSG-2A818 ‧ FSG-2A1224 ‧ FSG-3A818 ‧ FSG-3A1224
High Precision Surface and Form Grinders
Manual Surface Grinders: FSG-618M/FSG-612SP/FSG-618SP/FSG-818SP
Semi Automatic Surface Grinders: FSG-2A618/FSG-2A818/FSG-2A1224
Automatic Surface Grinders: FSG-3A818/FSG-3A1224
Features
Precise. Dependable. Affordable.

These words describe the core benefits behind the design of our FSG Series of manual surface and form grinding machines. They set the standards required by the automotive, mining, aerospace and job shop industries to meet current and future market needs.

This series of surface grinding machines is built for ease of operation and provides long-lasting, dependable performance requiring little to no service. The series is capable of producing "mirror" finishes on highly accurate workpieces due to machine construction features and the specially designed spindle directly coupled with a V3 motor. The machine's assembly, comprised of heavy-duty slide rails, single-piece base casting and hardened wheel-head guideways, results in a solid, rigid structure that minimizes vibration, movement and displacement.

Chevalier's user-friendly grinding machines come with a wide range of optional accessories that are available for various types of grinding requirements. And to ensure the affordable and reliable FSG-Series machines continue to operate efficiently for years to come, we back them with our no-nonsense standards and legendary service for reliable performance.

Specifications

Item Description FSG-618M
Capacity Max. grinding length-longitudinal 480 mm (18.9")
Max. grinding width-crosswise 170 mm (6.7")
Distance between table to spindle centerline 450 mm (17.7")
Max. table load 210 kg (462 lbs.)
Table Table size 150 x 460 mm (6.0" x 18.1")
Max. travel 520 mm (20.5")
Transverse movement (Z) Max. manual travel 185 mm (7.3")
Spindle Spindle speed 60Hz: 3,450 rpm
50Hz: 2,850 rpm
Spindle motor 1.5 kW (2 HP)
Wheel dimension OD x Width x Bore Ø205 x 12.7 x Ø31.75 mm (Ø8" x 0.5" x Ø1.3")
Machine dimensions Floor space (W x D x H) 1,700 x 1,100 x 2,550 mm (66.9" x 43.3" x 100.4")
Net weight 674 kg  (1,480 lbs.)

Item Description FSG-612SP
Capacity Max. grinding length-longitudinal 350 mm (13.8")
Max. grinding width-crosswise 170 mm (6.7")
Distance between table to spindle centerline 500 mm (19.7")
Max. table load 150 kg (330 lbs.)
Table Table size 150 x 330 mm (6.0" x 13.0")
Max. travel 360 mm (14.2")
Transverse movement (Z) Max. manual travel 195 mm(7.7")
Wheelhead elevation (Y) Rapid travel (approx.) Optional 330 mm/min (13 ipm)
Spindle Spindle speed 60 Hz: 3,450 rpm
50 Hz: 2,850 rpm
Spindle motor 1.5 kW (2 HP)
Wheel dimension OD x Width x Bore Ø205 x 12.7 x Ø31.75 mm (Ø8" x 0.5" x Ø1.3")
Machine dimensions Floor space (W x D x H) 1,750 x 1,232 x 1,870 mm (68.9" x 48.5" x 73.6")
Net weight 900 kg (1,980 lbs.)

Item Description FSG-618SP
Capacity Max. grinding length-longitudinal 500 mm (19.7")
Max. grinding width-crosswise 170 mm (6.7")
Distance between table to spindle centerline 500 mm (19.7")
Max. table load 210 kg (462 lbs.)
Table Table size 150 x 480 mm (6.0" x 18.9")
Max. travel 520 mm (22.5")
Transverse movement (Z) Max. manual travel 220 mm (8.7")
Wheelhead elevation (Y) Rapid travel (approx.) Optional 330 mm/min (13 ipm)
Spindle Spindle speed 60 Hz: 3,450 rpm
50 Hz: 2,850 rpm
Spindle motor 1.5 kW (2 HP)
Wheel dimension OD x Width x Bore Ø205 x 12.7 x Ø31.75 mm (Ø8" x 0.5" x Ø1.3")
Machine dimensions Floor space (W x D x H) 2,040 x 1,360 x 2,134 mm (80.3"  x 53.5" x 84.0")
Net weight 950 kg (2,090 lbs.)

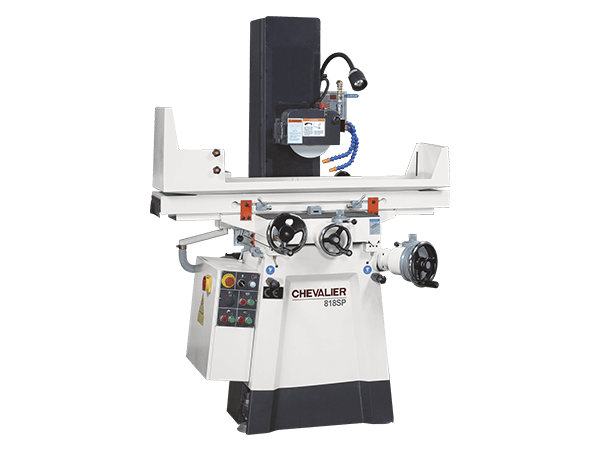

Item Description FSG-818SP
Capacity Max. grinding length-longitudinal 500 mm (19.7")
Max. grinding width-crosswise 220 mm (8.7")
Distance between table to spindle centerline 500 mm (19.7")
Max. table load 250 kg (551 lbs.)
Table Table size 200 x 480 mm (8.0" x 18.9")
Max. travel 520 mm (22.5")
Transverse movement (Z) Max. manual travel 220 mm (8.7")
Wheelhead elevation (Y) Rapid travel (approx.) Optional 330 mm/min (13 ipm)
Spindle Spindle speed 60 Hz: 3,450 rpm
50 Hz: 2,850 rpm
Spindle motor 1.5 kW (2 HP)
Wheel dimension OD x Width x Bore Ø205 x 12.7 x Ø31.75 mm (Ø8" x 0.5" x Ø1.3")
Machine dimensions Floor space (W x D x H) 2,040 x 1,360 x 2,134 mm (80.3"  x 53.5" x 84.0")
Net weight 1,050 kg (2,310 lbs.)

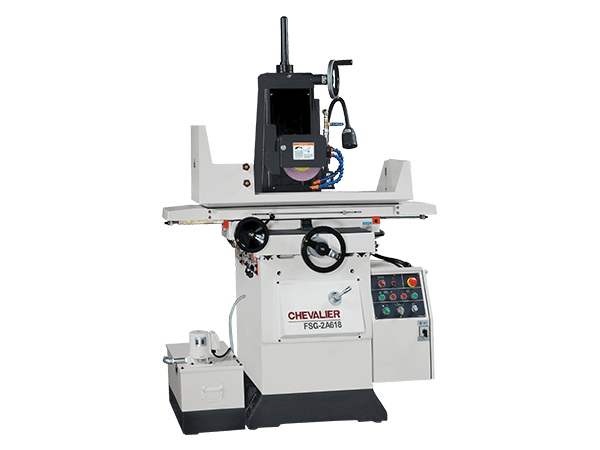

Item Description FSG-2A618
Capacity Max. grinding length-longitudinal 480 mm (18.9")
Max. grinding width-crosswise 170 mm (6.7")
Distance between table to spindle centerline 450 mm (17.7")
Max. table load 210 kg (462 lbs.)
Table Table size 150 x 460 mm (6.0" x 18.1")
Max. travel 500 mm (19.7")
Transverse movement (Z) Feed speed 960 mm/min (37 ipm)
Max. automatic travel 170 mm (6.7")
Max. manual travel 185 mm (7.3")
Spindle Spindle speed 60Hz: 3,450 rpm
50Hz: 2,850 rpm
Spindle motor 1.5 kW (2 HP)
Wheel dimension OD x Width x Bore Ø205 x 12.7 x Ø31.75 mm (Ø8" x 0.5" x Ø1.3")
Machine dimensions Floor space (W x D x H) 1,900 x 1,100 x 2,550 mm (74.8" x 43.3" x 100.4")
Net weight 790 kg (1,740 lbs.)

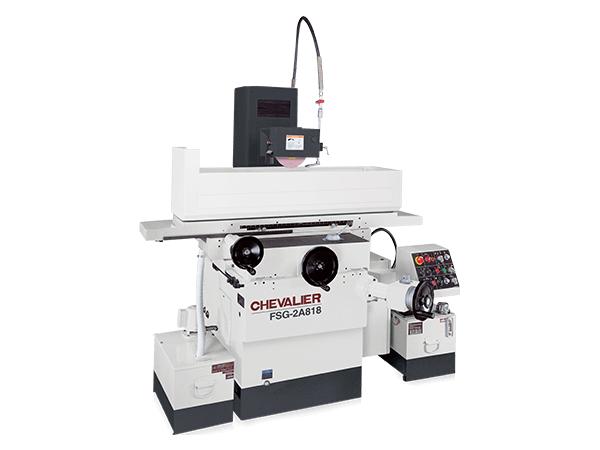

Item Description FSG-2A818
Capacity Max. grinding length-longitudinal 480 mm (18.9")
Max. grinding width-crosswise 220 mm (8.7")
Distance between table to spindle centerline 450 mm (17.7")
Max. table load 250 kg (551 lbs.)
Table Table size 200 x 460 mm (8.0" x 18.1")
Max. travel 500 mm (19.7")
Transverse movement (Z) Feed speed 960 mm/min (37 ipm)
Max. automatic travel 225 mm (8.9")
Max. manual travel 235 mm (9.3")
Spindle Spindle speed 60Hz: 3,450 rpm
50Hz: 2,850 rpm
Spindle motor 1.5 kW (2 HP)
Wheel dimension OD x Width x Bore Ø205 x 12.7 x Ø31.75 mm (Ø8" x 0.5" x Ø1.3")
Machine dimensions Floor space (W x D x H) 2,250 x 1,370 x 1,750 mm (88.6" x 53.9" x 68.9")
Net weight 1,250 kg (2,910 lbs.)

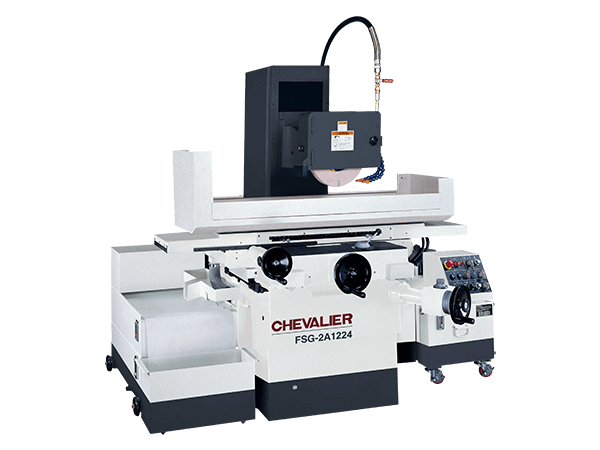

Item Description FSG-2A1224
Capacity Max. grinding length-longitudinal 630 mm (24.8")
Max. grinding width-crosswise 355 mm (14.0")
Distance between table to spindle centerline 600 mm (23.6")
Max. table load 420 kg (925 lbs.)
Table Table size 305 x 610 mm (12.0" x 24.0")
Max. travel 650 mm (25.6")
Transverse movement (Z) Feed speed 1,100 mm/min (43 ipm)
Max. automatic travel 355 mm (14.0")
Max. manual travel 365 mm (14.4")
Spindle Spindle speed 60Hz: 3,450 rpm
50Hz: 2,850 rpm
Spindle motor 3.7 kW (5 HP)
Wheel dimension OD x Width x Bore Ø205 x 12.7 x Ø31.75 mm (Ø8" x 0.5" x Ø1.3")
Machine dimensions Floor space (W x D x H) 2,735 x 1,760 x 2,250 mm (107.7" x 69.3" x 88.6")
Net weight 2300 kg (5,070 lbs.)

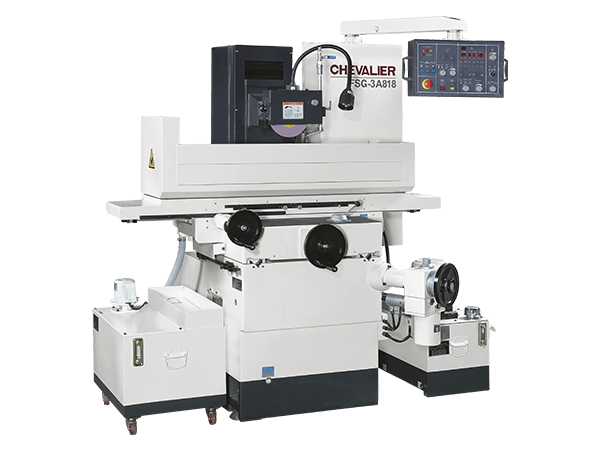

Item Description FSG-3A818
Capacity Max. grinding length-longitudinal 480 mm (18.9")
Max. grinding width-crosswise 220 mm (8.7")
Distance between table to spindle centerline 450 mm (17.7")
Max. table load 250 kg (551 lbs.)
Table Table size 200 x 460 mm (8.0" x 18.1")
Max. travel 500 mm (19.7")
Transverse movement (Z) Feed speed 960 mm/min (37 ipm)
Max. automatic travel 225 mm (8.9")
Max. manual travel 235 mm (9.3")
Wheelhead elevation (Y) Rapid travel (approx.) 330 mm/min (13 ipm)
Spindle Spindle speed 60Hz: 3,450 rpm
50Hz: 2,850 rpm
Spindle motor 1.5 kW (2 HP)
Wheel dimension OD x Width x Bore Ø205 x 12.7 x Ø31.75 mm (Ø8" x 0.5" x Ø1.3")
Machine dimensions Floor space (W x D x H) 2,250 x 1,790 x 1,900 mm (88.6" x 70.5" x 74.8")
Net weight 1,320 kg (2,910 lbs.)

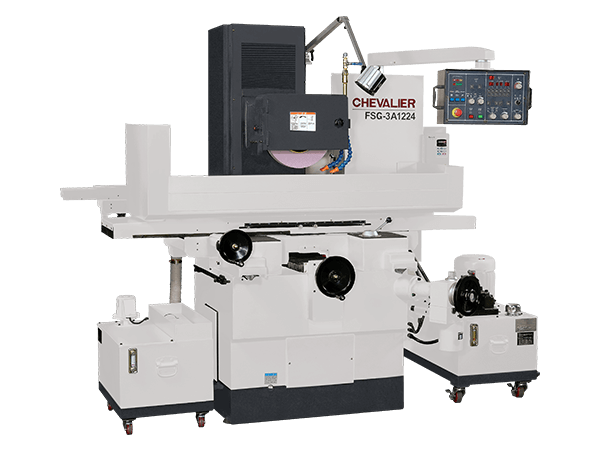

Item Description FSG-3A1224
Capacity Max. grinding length-longitudinal 630 mm (24.8")
Max. grinding width-crosswise 355 mm (14.0")
Distance between table to spindle centerline 600 mm (23.6")
Max. table load 420 kg (925 lbs.)
Table Table size 305 x 610 mm (12.0" x 24.0")
Max. travel 650 mm (25.6")
Transverse movement (Z) Feed speed 1,100 mm/min (43 ipm)
Max. automatic travel 355 mm (14.0")
Max. manual travel 365 mm (14.4")
Wheelhead elevation (Y) Rapid travel (approx.) 330 mm/min (13 ipm)
Spindle Spindle speed 60Hz: 3,450 rpm
50Hz: 2,850 rpm
Spindle motor 3.7 kW (5 HP)
Wheel dimension OD x Width x Bore Ø355 x 50 x Ø127 mm (Ø14" x 2" x Ø5")
Machine dimensions Floor space (W x D x H) 2,735 x 2,320 x 2,250 mm (107.7" x 91.3" x 88.6")
Net weight 2300 kg (5,070 lbs.)
