Heavy-duty Vertical Turning Centers

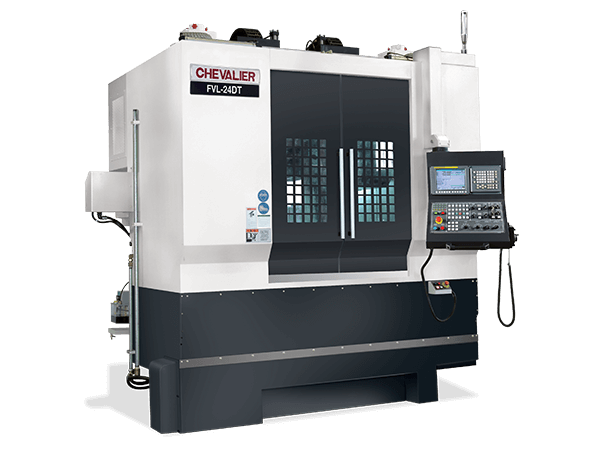

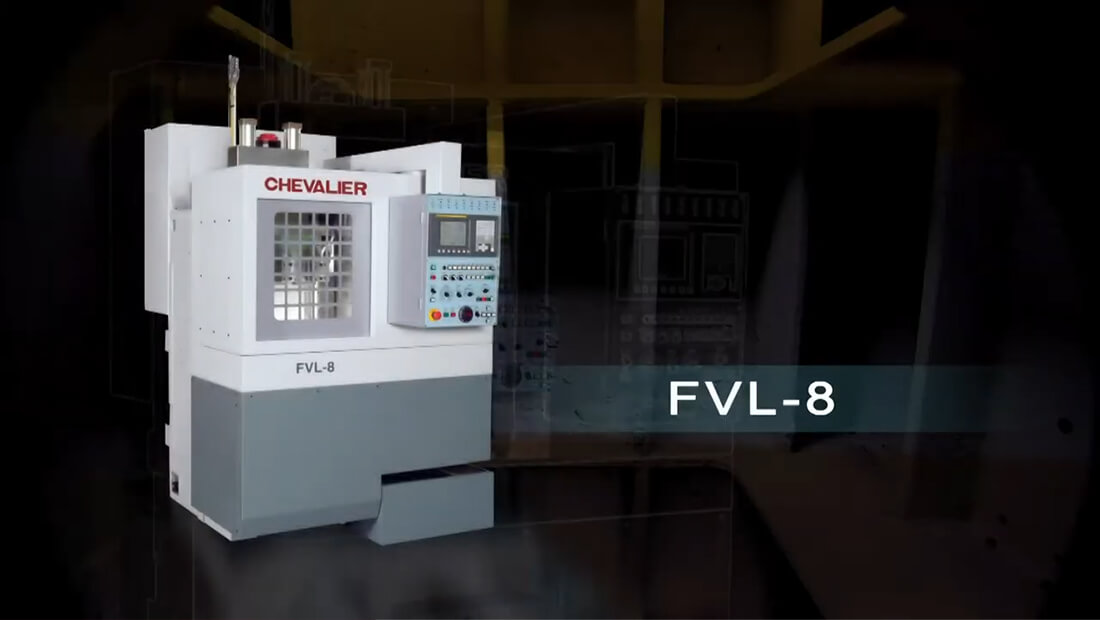

FVL-8 ‧ FVL-12 ‧ FVL-20 ‧ FVL-24
Heavy-Duty CNC Vertical Turning Lathe
Features
High Precision. Versatility. Productivity.

The FVL-8, 12, 20 and 24 CNC vertical lathe series is an extremely versatile box-way VTL that uses alloy steel precision ground box ways and features a high-rigidity power turret with a C-axis live turret, providing unbeatable accuracy for both turning and power milling providing unparalleled accuracy and maintain 0.004-millimeter accuracy over the full vertical stroke, far exceeding over other manufacturers' machines. Its single-piece Mennonite box-type heavy ribbed cast frame with the vertical column and base as a single unit provides maximum rigidity and these frames are precision ground and feature a unique slant bed design for perfect chip flushing efficiency suitable for machining heavy and hard-to-hold workpieces. FVL series CNC vertical lathe is the perfect choice for automation or cell manufacturing, its simplified fixture design minimizes workpiece clamping and features easier loading and unloading in a production line is excellent for turning irregular-shaped workpieces.

Video
Specifications

Item Description FVL-8 FVL-8HT
Capacity Max. swing diameter Ø400 mm (15.7") Ø400 mm (15.7")
Max. cutting diameter Ø220 mm (8.7") Ø200 mm (7.9")
Max. turning height 430 mm (16.9") 430 mm (16.9")
Spindle Spindle speed 50~3,500 rpm 50~3,500 rpm
Chuck size 8" 8"
Spindle nose type A2-6  A2-6
Spindle bearing I.D. Ø100 mm (Ø3.9") Ø100 mm (Ø3.9")
Spindle nose to space 864 mm (34.0") 864 mm (34.0")
Spindle center to outside 340 mm (13.4") 340 mm (13.4")
Turret Turret type Gang  Horizontal
Tool storage capacity 2 8
Travel X-travel 235 mm (9.3") 235 mm (9.3")
Z-travel 430 mm (16.9") 430 mm (16.9")
Feed rates X-axis rapid traverse 20 m/min (787 ipm) 20 m/min (787 ipm)
Z-axis rapid traverse 20 m/min (787 ipm) 20 m/min (787 ipm)
Motors Spindle motor 9 kW /11 kW (α18iP)  9 kW /11 kW (α18iP)
Axis motors (X / Z) 1.6 kW / 1.6 kW  1.6 kW / 1.6 kW
Machine dimension Floor space (W x D x H) 1,623 x 2,955  x 2,598 mm (63.9" x 116.3" x 102.3") 1,623 x 2,955  x 2,598 mm (63.9" x 116.3" x 102.3")
Net weight 3,600 kg (7,900 lbs.) 3,600 kg (7,900 lbs.)

Item Description FVL-12HT FVL-12HTL FVL-12MC
Capacity Max. swing diameter Ø550 mm (Ø21.7") Ø550 mm (Ø21.7") Ø550 mm (Ø21.7")
Max. cutting diameter Ø350 mm (Ø13.8") Ø350 mm (Ø13.8") Ø350 mm (Ø13.8")
Max. turning height 550 mm (21.7") 550 mm (21.7") 430 mm (16.9")
Spindle Spindle speed 50~3,500 rpm  50~3,500 rpm  50~3,500 rpm
Chuck size 12" 12" 12"
Spindle nose type A2-8 A2-8 A2-8
Spindle bearing I.D. Ø130 mm (Ø5.1") Ø130 mm (Ø5.1") Ø130 mm (Ø5.1")
Spindle nose to space 886 mm (34.9") 886 mm (34.9") 886 mm (34.9")
Spindle center to outside 400 mm (15.7") 400 mm (15.7") 400 mm (15.7")
Turret Turret type Horizontal  Horizontal  Sauter
Tool storage capacity 12 12 8
Travel X-travel 190 mm (7.5") 190 mm (7.5") 290 mm (11.4")
Z-travel 550 mm (21.7") 550 mm (21.7") 550 mm (21.7")
Feed rates X-axis rapid traverse 20 m/min (787 ipm) 20 m/min (787 ipm) 20 m/min (787 ipm)
Z-axis rapid traverse 20 m/min (787 ipm) 20 m/min (787 ipm) 20 m/min (787 ipm)
Motors Spindle motor 18.5 kW / 22 kW (α40iP)  18.5 kW / 22 kW (α40iP)  18.5 kW / 22 kW (α40iP)
Axis motors (X / Z) 3 kW / 3 kW  3 kW / 3 kW  3 kW / 3 kW
Turret motor 1.2 kW  1.2 kW  1.2 kW
Tailstock Tailstock stroke —  444 mm (17.5") —
Centers stroke —  120 mm (4.7") —
Centers taper —  MT5  —
Centers drive —  Oil pressure  —
Tailstock positioning —  Manual  —
Machine dimension Floor space (W x D x H) 1,980 x 2,850 x 3,200 mm (78.0" x 112.2"x 126.0") 1,980 x 2,850 x 3,200 mm (78.0" x 112.2"x 126.0") 1,980 x 2,850 x 3,200 mm (78.0" x 112.2"x 126.0")
Net weight 5,650 kg (12,400 lbs.) 5,650 kg (12,400 lbs.) 5,950 kg (13,100 lbs.)

Item Description FVL-20HT FVL-20DT
Capacity Max. swing diameter Ø750 mm (Ø29.5") Ø670 mm (Ø26.4")
Max. cutting diameter Ø550 mm (Ø21.7") Ø558 mm (Ø22.0")
Max. turning height 430 mm (16.9") 400 mm (15.7")
Spindle Spindle speed 50~2,000 rpm  50~2,000 rpm
Chuck size 15" 15"
Spindle nose type A2-11 Ø250
Spindle bearing I.D. Ø160 mm (Ø6.3") Ø140 mm (Ø5.5")
Spindle nose to space 950 mm  (37.4") 1,040 mm (Ø40.9")
Spindle center to outside 430 mm  (16.9") 550 mm (Ø21.7")
Turret Turret type Horizontal  Vertical
Tool storage capacity 12 6+6
Travel X-travel -30 mm, +405 mm (-1.2", +15.9") -75.5 mm, +312 mm (-3.0", +12.3")
Z-travel 600 mm (23.6") 415 mm (16.3")
Feed rates X-axis rapid traverse 20 m/min (787 ipm) 20 m/min (787 ipm)
Z-axis rapid traverse 20 m/min (787 ipm) 20 m/min (787 ipm)
Motors Spindle motor Fanuc :18.5 kW / 22 kW (α40iP)
Optional 30 kW / 37 kW (α30i)
Fanuc :18.5 kW / 22 kW (α40iP)
Optional 30 kW / 37 kW (α30i)
Axis motors (X / Z) 3 kW / 4 kW  4 kW / 4 kW
Machine dimension Floor space (W x D x H) 2,080 x 3,067 x 3,457 mm (81.9" x 120.7" x 136.1") 3,630 x 4,655 x 3,445 mm (142.9"x 183.3" x 135.6")
Net weight 9,000 kg (19,800 lbs.) 13,000 kg (28,600 lbs.)

Item Description FVL-24DT FVL-24VT
Capacity Max. swing diameter Ø850 mm (Ø33.5") Ø850 mm (Ø33.5")
Max. cutting diameter Ø750 mm (Ø29.5") Ø750 mm (Ø29.5")
Max. turning height 400 mm (15.7") 400 mm (15.7")
Spindle Spindle speed 50~2,500 rpm 50~2,500 rpm
Chuck size 15" 15"
Spindle nose type A2-11 A2-11
Spindle bearing I.D. Ø160 mm (Ø6.3") Ø160 mm (Ø6.3")
Spindle nose to space 1,040 mm (Ø40.9") 1,040 mm (Ø40.9")
Spindle center to outside 620 mm (Ø24.4") 620 mm (Ø24.4")
Turret Turret type Vertical Vertical
Tool storage capacity 6+6  6
Travel X-travel -60 mm, +400 mm (-2.4", +15.7") -60 mm, +400 mm (-2.4", +15.7")
Z-travel 415 mm (16.3") 415 mm (16.3")
Feed rates X-axis rapid traverse 20 m/min (787 ipm) 20 m/min (787 ipm)
Z-axis rapid traverse 20 m/min (787 ipm) 20 m/min (787 ipm)
Motors Spindle motor Fanuc :18.5 kW / 22 kW (α40iP)
Optional 45 kW / 55 kW (α50i)
Fanuc :18.5 kW / 22 kW (α40iP)
optional 30 kW / 37 kW (α30i)
Axis motors (X / Z) 4 kW / 4 kW  4 kW / 4 kW
Machine dimension Floor space (W x D x H) 3,780 x 4,655 x 3,445 mm (148.8" x 183.3" x 135.6") 3,145 x 4,655 x 3,445 mm (123.8" x 183.3" x 135.6")
Net weight 13,000 kg (28,600 lbs.) 11,000 kg (24,200 lbs.)
