CNC High Precision Linear Guideway Grinding Machine
CNC High Precision Linear Guideway Grinding Machine
Features
Linear guideway grinding machine is equipped with two vertical grinding spindle. The entire machine adopts a rectangular column door design, the structure has good rigidity and stability. The Y/V axis is equipped with a 30HP servo motor feed, and a high resolution optical ruler is used for the closed loop design. Precise positioning feed ensures stable machining accuracy.
Specifications
| Item | FLG-4M | |
|---|---|---|
| Control System | CHEVALIER SMART CNC Control | |
| Capacity | Max. Grinding Length-Longitudinal | 4,000 mm (15.7") |
| Max. Grinding Width-Crosswise | 80 mm (3.1") | |
| Distance Between Vertical Heads (Min.~Max.) |
300 ~870 mm (11.8"~34.3") | |
| Max. Dis. from the Surface of Wheel to the Table Surface (Min.~Max.) | 100~500 mm (3.9"~19.7") | |
| Max. Workpiece Weight | 100 kg (220 lbs) | |
| Table | Table Working Size | 400 x 4,800 mm (15.7" x 189") |
| The Distance From Table To Ground | 1,100 mm (43.3") | |
| Distance Between Column (Door Width) | 1,400 mm (55.1") | |
| Table Speed | 0~30 m/min | |
| Max. Table Stroke | 4,500 mm (177.2") | |
| Transverse Movement (Z/W Axis) |
Max. Stroke | 800 mm (31.5") |
| Feed Speed | 0~5 m/min | |
| Least Increment | 0.001 mm | |
| Elevating Movement Of Wheel Head (Y/V Axis) |
Max. Stroke | 350 mm (13.8") |
| Feed Speed | 0~3 m/min | |
| Spindle | Spindle Speed | 100~2000 rpm |
| Grinding Wheel (OD. x Width x Bore) | 610 x 50 x 254 mm (Ø24" x 2" x Ø10") | |
| Motor | Spindle Motor | 22 kW (30 HP) x 2 pc |
| Axis Motor (Y/Z/W/V) | 3 / 3 / 3 / 3 kW | |
| Hydraulic Tank | 2 kW | |
| Lubricant Tank | 0.4 kW | |
| Coolant Tank | 1.1 kW x 3 pc | |

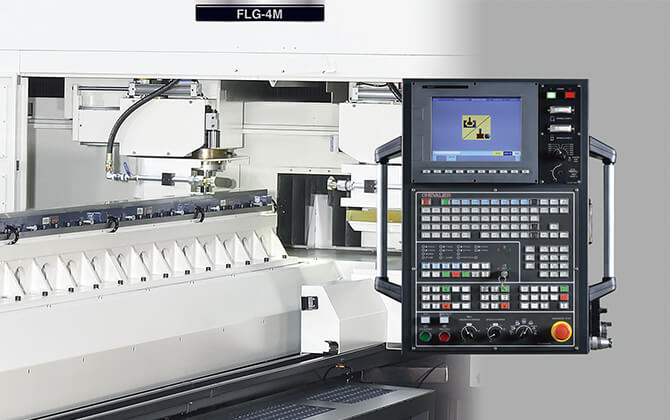

Control Introduction
