Fully Automatic Rotary Surface Grinder

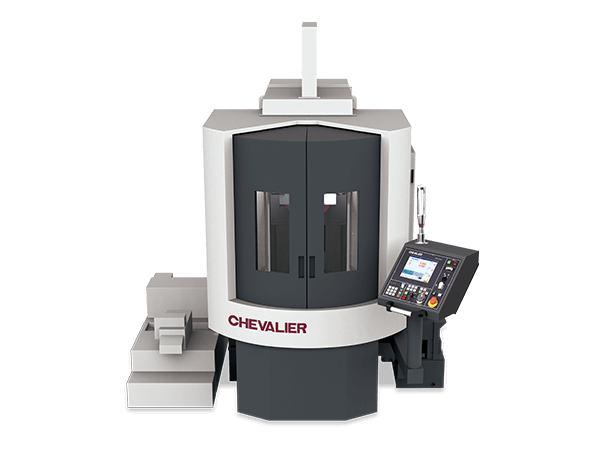

Chevalier has added the FRG-400/600 rotary surface grinder to our grinder series. This series features several excellent designs, ensuring a smooth and stable ribbed high-rigidity column structure, capable of handling heavy-load grinding with a fully enclosed hydrostatic rotary table.

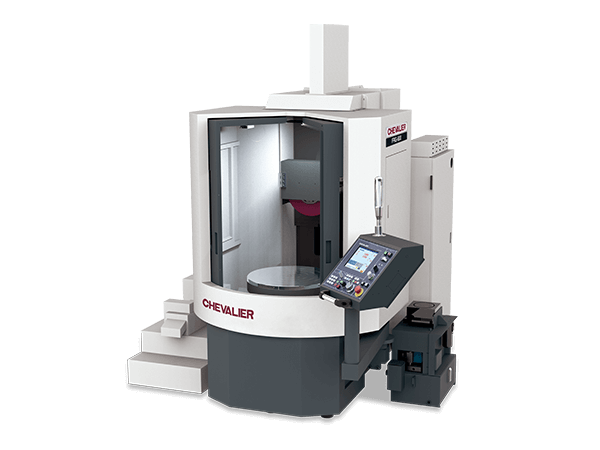

Ample interior grinding space and a double door design contribute to ease of access for workpiece loading and unloading. The drainage system easily removes swarf for cleaning. The machine is fully enclosed with a sealed, waterproof metal guard.
This series of grinders meets the high-efficiency productivity requirements and the demand for creating smart factories in industries such as aerospace, automotive, energy, medical, and semiconductor.

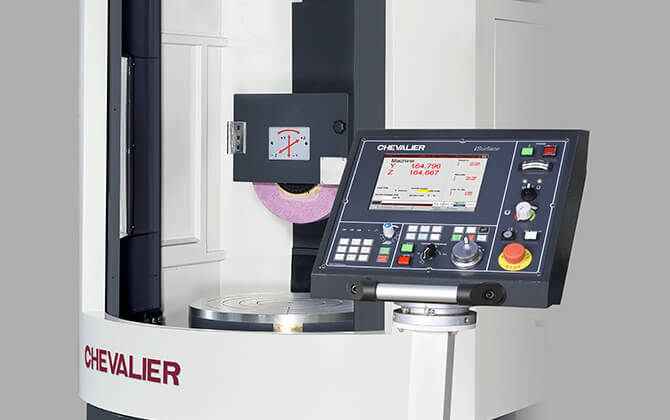

iSurface control feature
Surface dressing
Surface grinding, step grinding, stair grinding
| Item | Description | FRG-400 |
|---|---|---|
| Control system | iSurface | |
| Capacity | Max. grinding radius | R225 mm (R8.9") |
| Max. grinding height (elevating) | 350 mm (13. 8") | |
| Distance between table to spindle centerline | 600 mm (23.6") | |
| Height from the machine table to ground | 820 mm (32.3") | |
| Max. table load | 150 kg (330 lbs.) | |
| Rotary table | Table size | Ø400 mm (Ø15.7") |
| Table speed | 10~150 rpm | |
| Transverse movement (Z) | Max. travel | 380 mm (15.0") |
| Feed speed | 0~3,000 mm/min (0 ~ 9.75 fpm) | |
| Wheelhead elevation (Y) | Max. travel | 450 mm (17.7") |
| Feed speed | 0~2,000 mm/min (0~6.56 fpm) | |
| Spindle | Spindle speed | 500~2,200 rpm |
| Spindle motor | 5.5 kW (7.5 HP), optional 7.5 kW (10 HP) | |
| Motors | Rotary table motor | 2.4 kW (3 HP) |
| Axis motors (Y/Z) | Y/Z: 1.7 kW | |
| Wheel dimension | OD x Width x Bore | Ø355 x 38 x Ø127 mm (Ø14" x 1.5" x Ø5") |
| Tank capabilities | Oil tank capacity for rotary table | 18 L (5 gals.) |
| Machine dimensions | Floor space (W x D x H) | 2,800 x 2,800 x 2,610 mm (110.2" x 110.2" x 102.8") |
| Net weight | 3,400 kg (7,500 lbs.) |
| Item | Description | FRG-600 |
|---|---|---|
| Control system | iSurface | |
| Capacity | Max. grinding radius | R325 mm (R12.8") |
| Max. grinding height (elevating) | 350 mm (13. 8") | |
| Distance between table to spindle centerline | 600 mm (24.4") | |
| Height from the machine table to ground | 820 mm (32.3") | |
| Max. table load | 400 kg (881 lbs.) | |
| Rotary table | Table size | Ø600 mm (Ø23.6") |
| Table speed | 10~150 rpm | |
| Transverse movement (Z) | Max. travel | 380 mm (15.0") |
| Feed speed | 0~3,000 mm/min (0~9.75 fpm) | |
| Wheelhead elevation (Y) | Max. travel | 450 mm (17.7") |
| Feed speed | 0~2,000 mm/min (0~6.56 fpm) | |
| Spindle | Spindle speed | 500~2,200 rpm |
| Spindle motor | 5.5 kW (7.5 HP), optional 7.5 kW (10 HP) | |
| Motors | Rotary table motor | 2.4 kW (3 HP) |
| Axis motors (Y/Z) | Y/Z: 1.7 kW | |
| Wheel dimension | OD x Width x Bore | Ø355 x 38 x Ø127 mm (Ø14" x 1.5" x Ø5") |
| Tank capabilities | Oil tank capacity for rotary table | 18 L (3.5 gals.) |
| Machine dimensions | Floor space (W x D x H) | 2,800 x 2,800 x 2,610 mm (110.2" x 110.2" x 102.8") |
| Net weight | 3,500 kg (7,700 lbs.) |
