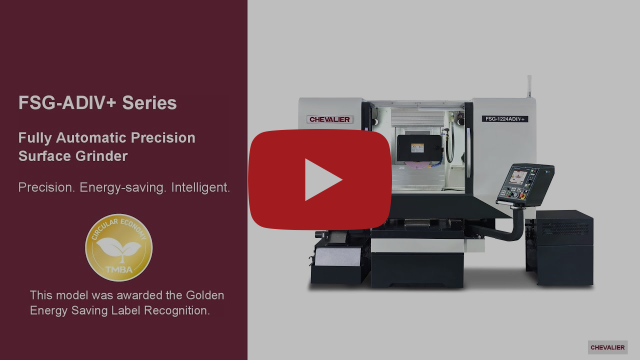

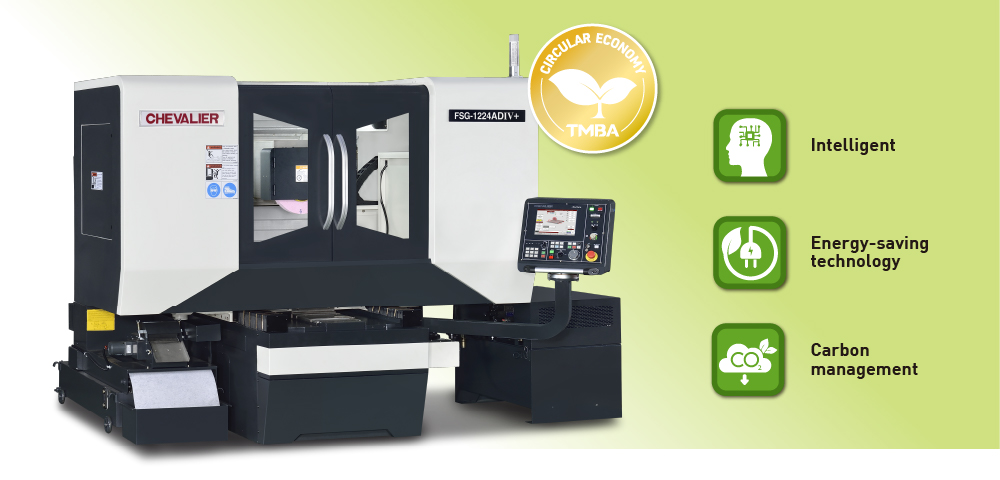

Fully Automatic Precision Surface Grinder
Precision, Energy-saving, Intelligent

To realize the vision of sustainable smart manufacturing and address the challenges of green manufacturing with customers, CHEVALIER developed the FSG-12/16ADIV+ series of CNC surface grinders. This series features several excellent designs, including a brand new elevating linear guideway mechanism, an air purge spindle design, and a fully supported rail design, significantly enhancing grinding performance, machining accuracy, and operational stability. It not only offers exceptional processing accuracy but also incorporates the most advanced energy consumption monitoring technology. The FSG-1224ADIV+ was awarded the ISO 14955 standards for environmental protection and energy conservation certification. This grinding machine integrates carbon management, energy saving technology, and the intelligent Machine Communications System™ (iMCS) to support sustainable development.

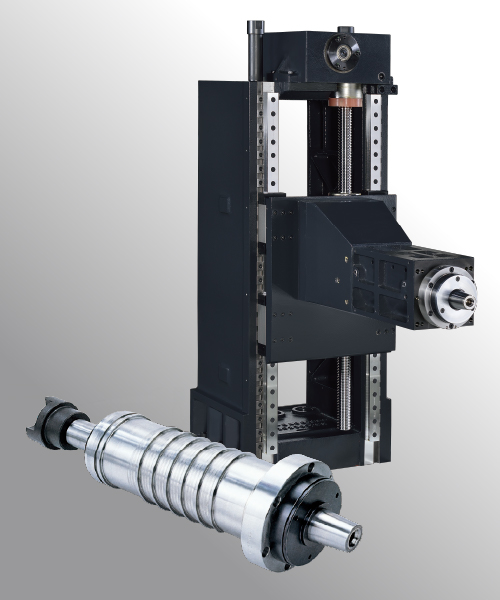

Elevating transmission mechanism and spindle design
To achieve accurate feeding at 0.001 mm increments, the elevating transmission mechanism is equipped with a C2-grade ballscrew along with a worm gear structure and driven by a servo motor. The machine column and spindle seat are equipped with linear guideways to enhance accuracy and stability. The spindle is supported by four Class7 (P4), ultra-precision angular contact ball bearings, combined with a built-in air purge design to improve grinding stability.

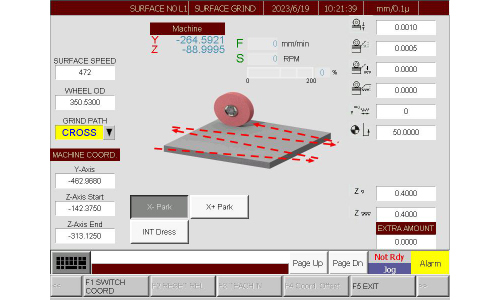

Graphical interface
It allows operators to easily create their own programs for generating complex grinding tasks in a single cycle, significantly enhancing production efficiency.

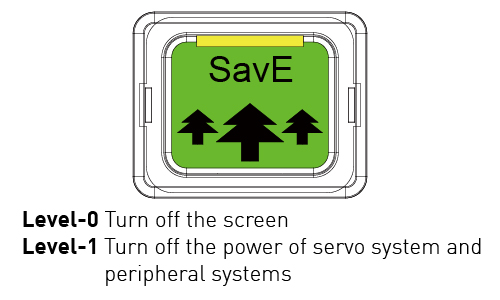

Smart energy-saving functions
Automatically activates various energy saving measures based on the machine's processing and standby status, effectively saving nearly 7% of energy consumption and reducing carbon emissions.

High efficiency energy-saving design*
Energy saving technology with energy saving accessories can reduce energy consumption by up to 30%, lowering operating costs for businesses.

Energy consumption visualization*
Equipped with features such as real-time monitoring, data analysis, and energy consumption management, it provides related energy saving and carbon reduction management solutions.

Fully enclosed cover design*
The full enclosure cover offers comprehensive protection, ensuring a safe and pollution free working environment for operators.

* Optional accessories

CIMT 2025 China International Machine Tool Exhibition Recap
Thank you for visiting CIMT 2025!
Chevalier team present new product technology seminar before the exhibition, and interacted face-to-face with distributors and customers from all over the country during the exhibition, with enthusiastic reactions and a successful event.

The Chevalier machines at the show included:
FSG-1224ADIV+ NEW Fully Automatic Precision Surface Grinder
FRG-600S CNC Rotary Surface Grinder
FVL-12HTL High-efficiency Vertical Lathe

FSG-12/16ADIV+ Series Fully Automatic Precision Surface Grinder
